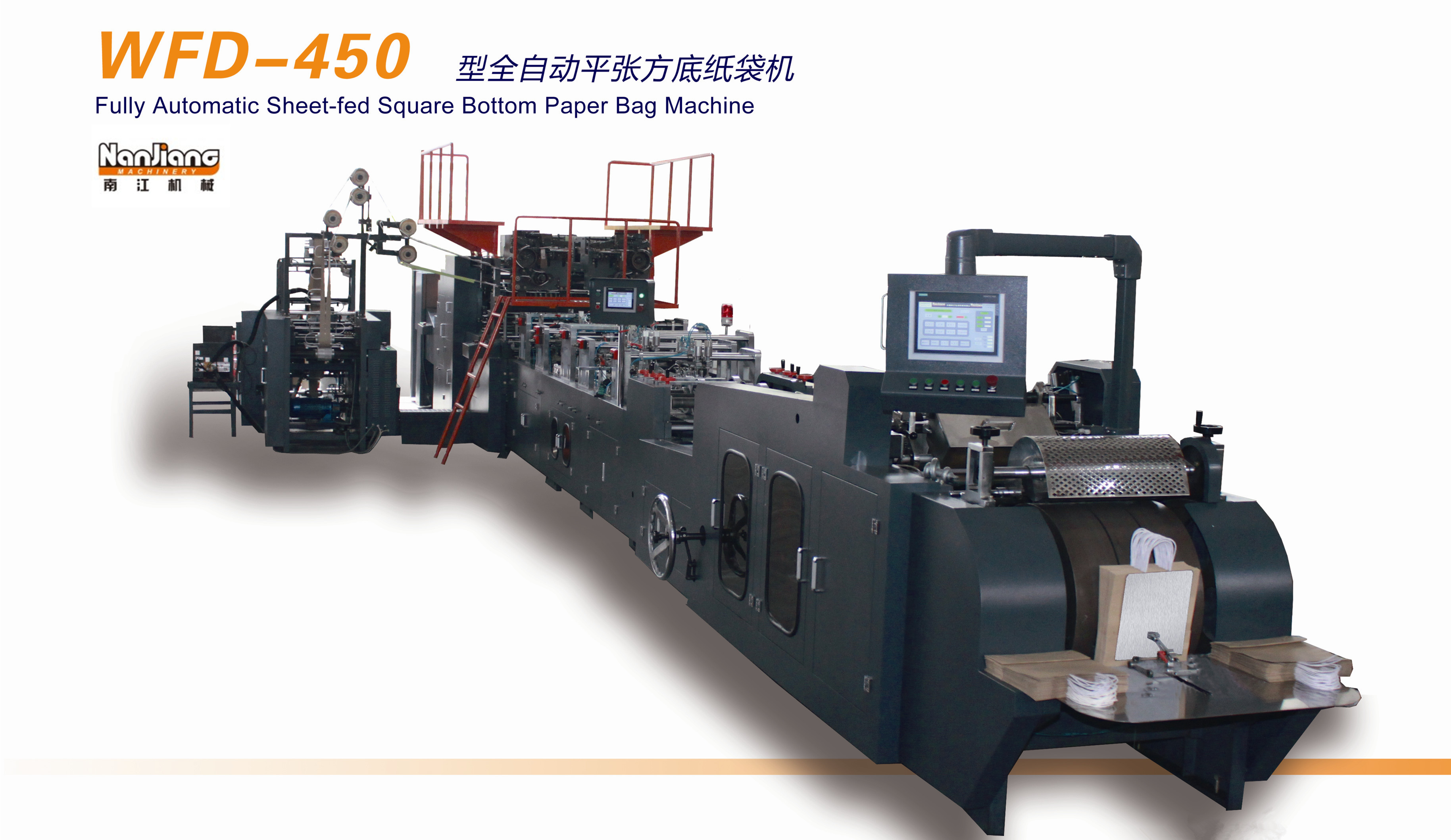

            WFD-450 Sheet Feed Carry Bag Machine with top-fold and handle units

            WFD-450 Sheet fed Paper Carry Bag with handle machine is fully automatic machine for the production of paper bags with paper twisted rope handle. The material could be Sheet paper or printed sheet paper. Whole machine is controlled by computer central control system with touch screen.

            It can produce variable sizes paper bag and paste paper handle inline for completely paper bags without any manual process. The machine automatic paper fed from sheet, handle pasting line,top of bag folding, tube forming, bottom forming, bottom glue, bag forming and final bag output,or fold the top and punching holes without handle unit. All steps are completed in-line; this machine is an idea equipment for Twist handle paper carry bags and realize a fully automated line for garment, shoes or all luxury brands packing bag production line which could be directly deliver to customer bags .



            Model

            WFD-450

            Max. Paper size

            1225 x 600mm (L x W)

            Min. Paper size

            625 x 350mm (L x W)

            Top fold

            40-60mm

            Handle Length

            Diamention of rope

            Paper weight (Handle)

            170-185mm

            4-6mm

            120-250 g/m2

            Paper Weight

            100-230g/m2

            Paper bag size max.

            450 x 450 x 160mm(LxWxB)

            Paper bag size min.

            220 x 220 x 80mm(LxWxB)

            Speed

            40-60bags/min.

            (50-75bags/min. if without handle)

            Machine Weight

            Machine Power

            20000KG

            22KW

            Machine dimensions

            15000*4500*2500MM


            Video
