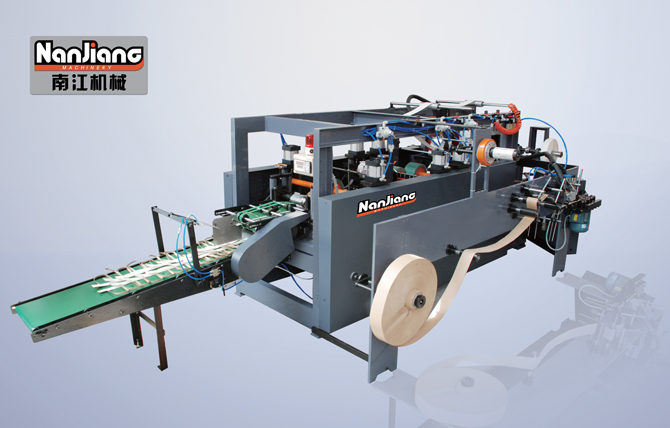

            WFD-100-1 High Speed twist-rope & Flat-belt handle machine
            WFD-100-1 圓繩扁…



            Performance And Characteristics:

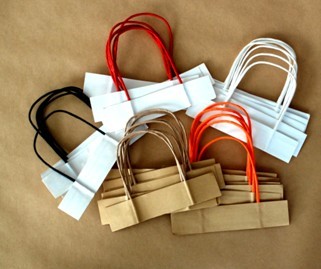

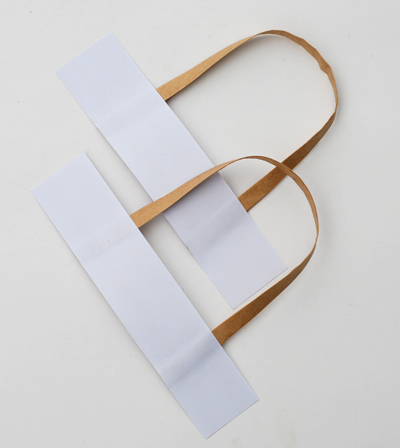

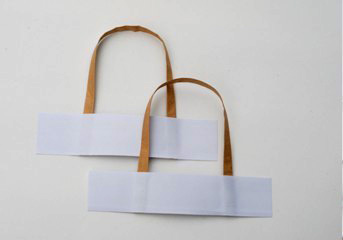

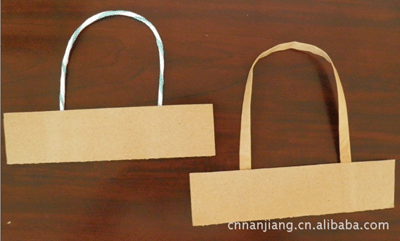

            This is a high-speed machine for producing paper handles, it pastes twist paper ropes and paper together for handles, then cut off then in separate automatically. Besides, it has the functions of handles counting, handles putting in order and handles colling. It is and ideal supporting machine of paper Handbag Making Machine.


            All type of paper handle machines have extra option with long convey blet which is able to apply glue on handle surface and could paste into bags directly by workers.


            Main Technical Parameter

            Model

            WFD100-1

            Paper weight For handle

            100-120g/m2;

            Paper weight For belt

            100-120g/m2.

            Length of rope(belt)

            330-370mm or 380-420mm

            Diameter of paper rope

            3-5MM

            Width of paper flat  belt

            10-12mm

            Width of two paper roll

            90-100mm

            Speed

            100-300pcs/min

            Power Consumption

            10KW

            Machine dimensions

            6000*1800*1800MM

            18000*1800*1800MM( extended conveyer belt)

            weight
